High-Quality Ferrules Fiber Optic Bundle Patch Cord With 4-144 core available
Description of Fiber Optic Bundle Patch Cord
The main cable of multi-core branch jumper is multi-core round cable with conventional optical fiber connectorat both ends. Black branch or hot shrink tube is used as branch node which can save cost and ensure goodmechanical and optical performance.
Our Bundle Patch cord provides high reliability and flexibility for our customers in differentindustries. Our top-of-the-line fiber optic cable assembles and stringent manufacturing processensures the excellent optical performance for our Bundle Patch cord with traceable data. All Bundle Patchcord can be customized in length, fiber type and connector types to suit each customer requirement withour state-of-the-art production facilities.
Features and Benefits of Fiber Optic Bundle Patch Cord
1) High-quality ferrules.
2) 4-144 core available.
3) Low loss or standard loss connectivity.
4) 100% factory tested assemblies.
5) Low insertion loss, high return loss, stricter than industrystandards.
6) Small volume, high fiber density.
7) Good exchangeability and good durability.
8) Stable optical properties.
Technical Data of Fiber Optic Bundle Patch Cord
| Mechnical Data | Value |
| Connector Type | LC/SC/FC/ST |
| Polarity Type | A to B, A to A |
| Branch Cable Diameter | 0.9,2.0,3.0mm |
| Cable Color | Yellow, Orange, Aqua, Violet |
| Optical Data | Value |
| Fiber Mode | OS1/OS2/G657A - 9/125 bend insensitive (A.1 or A.2) OM1/2/3/4/5 |
| Fully Compliant | 850nm (Multimode), 1310nm/1550nm (Singlemode) |
| IL(Low Loss) | Singlemode≤0.10dB, Multimode≤0.10dB |
| IL(Standard Loss) | Singlemode≤0.3dB, Multimode≤0.3dB |
| Return Loss | Singlemode UPC≥50dB APC≥60dB Muiltmode UPC≥25dB |
Environment Data
| Description | Value |
| Operating Temperature | -20℃ to +60℃ |
| Store Temperature | -20℃ to +60℃ |
| Fully Compliant | IEC-61754, TIA/EIA-604, GR326, RoHS |
Odering Information
| - | x | x | x | x | x | x | x | x | x | x |
| Type | Connector | Polish | Connector | Polish | Fiber Mode | Insertion Loss | Polarity | Branch Cable Diameter | Jacket | Length |
| FOBPC | 1=LC/Simplex 2=SC/Simplex 3=FC/Simplex 4=ST/Simplex 5=LC/Duplex 6=SC/Duplex | 1=UPC 2=APC | 1=LC/Simplex 2=SC/Simplex 3=FC/Simplex 4=ST/Simplex 5=LC/Duplex 6=SC/Duplex | 1=UPC 2=APC | 1=OS1 2=OS2 3=G657A1 4=G657A2 5=OM1 6=OM2 7=OM3 8=OM4 9=OM5 | 1=Low Loss 2=Standard Loss | 1=A-A 2=A-B | 1=2.0/simplex 2=3.0/simplex 3=2.0x4.1/duplex | 1=LSZH 2=PVC | 01=01m ... 99=99m |
Note: APC only for single mode
Example:FOBPC 5161122313 Means : Duplex, LC/UPC -SC/UPC, OS2, Standard Loss, Polarity AB, OD 2.0X4.1mm, LSZH, 3mLength
Our certificates
1) ISO9002
2) SGS, ROHS
3) ULE329066
4) REACH
Testing Lab
| No | Device name | No | Device name |
| 1 | Optical time domain reflectometer (OTDR) | 8 | GNZV Cable Torsion Testing Machine |
| 2 | Fiber Polarization Mode Dispersion | 9 | GQNV Cable Flexing Testing Machine |
| 3 | Fiber Dispersion ,Strain Tester | 10 | GJRV Cable Winding Testing Machine |
| 4 | High Low Temperature Test Chamber | 11 | GZDV Cable Vibration Testing Machine |
| 5 | Cable Impact Testing Machine | 12 | Cable Water Penetration Test |
| 6 | Cable Squash Tensile Testing Machine | 13 | Fusion Splicer |
| 7 | GWQV Cable Bending Tester | 14 | Cable Water Penetration Test Rig |
Advantages of Fiber Optic Bundle Patch Cord
1) Professional cable manufacturer
2) About 20 years experiences in cable industry
3) MOQ just 1Km
4) ISO, UL , ROSH,REACH...certifications
5) Can be customized production of fiber optic cable

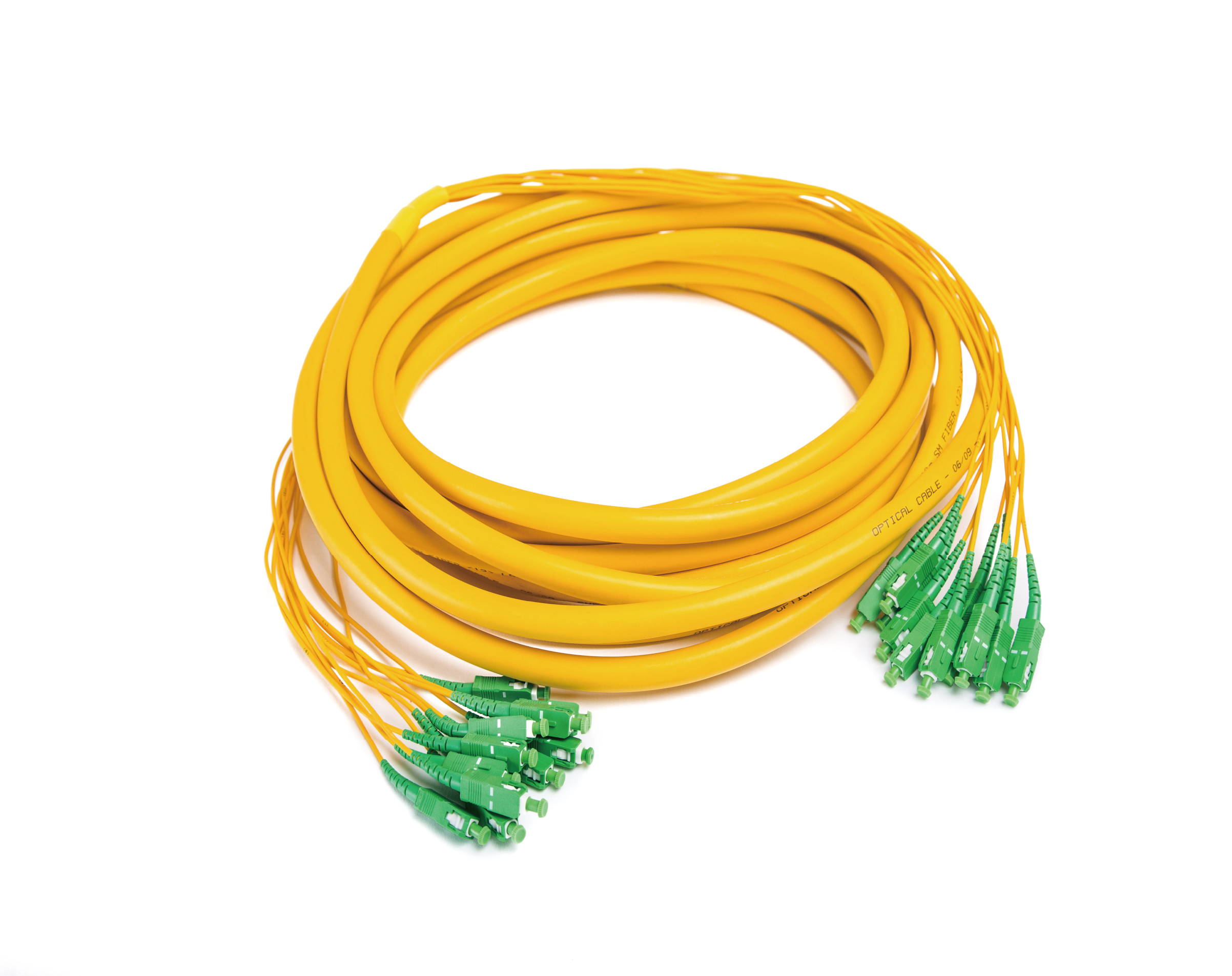

Images of Fiber Optic Bundle Patch Cord
